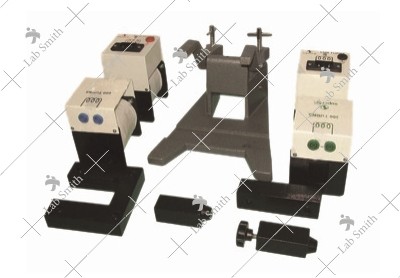

Transformer Stand And Core

Apparatus is designed primarily for demonstration of the basic principles of transformers. It consists of a laminated U-core with laminated I-core, both with 32 x 25 mm cross section to form a closed core of size 102 x 127 mm. Heavy aluminium alloy stand with removable clamping rods, 2 pole pieces, each 65×30 x25 mm with one end cone shaped, to accept support rod and shading ring. Poles also have a hole drilled through lengthwise to take a light beam.

Ordering Information:
