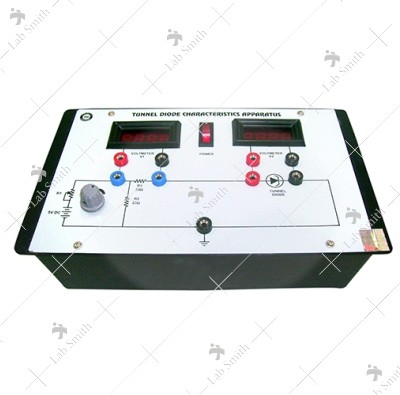

We are a respected supplier of Tunnel Diode Characteristics Apparatus to our highly honoured clients. It finds application in analog electronics lab as per the requirements of our patrons. It is fabricated using premium quality raw material and progressive machinery at our vendors’ unit in compliance with the industrial set norms and standards. Tunnel Diode Characteristics Apparatus stands high on performance, quality, durability and strength, leading to high rising demands in both domestic as well as overseas markets among our competitors.

Objective:

To Plot V-I Characteristic & Resistance Characteristic of Tunnel Diode in Forward Bias

Technical Specifications:

• Inbuilt Fixed DC regulated power supply

• Output Voltage : +5VDC

• On Board Digital Panel Meter for measuring

• V1 : Voltage across Resistance R 3

• V2 : Voltage across Tunnel Diode

• Potentiometer & Diode

• Potentiometer : R1 (Current control)

• Tunnel Diode : IN 3717

• High quality Bakelite used as front panel of 270mm x 170mm & mounted on light weight shock proof plastic cabinet

• Symbol diagram printed on Bakelite Front Panel & all important test Points are brought out on front panel

• Power requirement: 230 VAC 10%, 50Hz.

• Weight: 1.5Kg Approx.

• Dimensions (mm) : 300( L) x 175(B) x 75(H)

Standard Accessories:

Power chord, Patch chords & Instruction manual.
