DESCRIPTION :

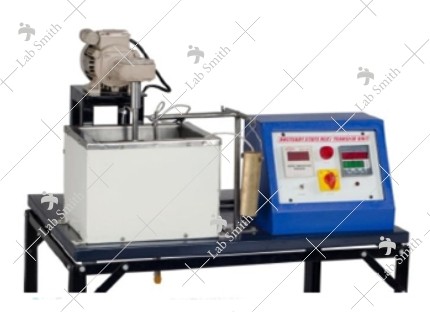

The apparatus consists of a small test cylinder. The cylinder is heated by a constant temperature water bath, till steady state is reached. During heating, temperature of the cylinder is function of time and hence, heating of cylinder is under unsteady state heat transfer.
The temperature of cylinder is measured with the help of temperature sensor inserted in the centre. The hot water bath is provided with a heater and is controlled by digital temperature controller. An agitator is also provided to maintain the constant bath temperature.
EXPERIMENTATION:- To calculate the Biot number, Fourier number.
- To calculate the heat transfer coefficient.
UTILITIES REQUIRED :
- Electricity Supply : 1 Phase, 220 V AC, 1 kW.
- Bench area of 1.5 m x 1.5 m.
TECHNICAL DETAILS :Water Bath Material- stainless steel Capacity-8 lit.(Approx.) Stirrer for Bath Stainless Steel Impeller with shaft coupled to a FHP motor. Heater Nichrome wire heater Test Cylinder One each of Stainless Steel & Brass. Control panel comprising of Digital Temp. Controller 0-199.9°C, (For Water Bath) Digital Temp.Indicator 0-199.9°C, TemperatureSensors RTD PT-100 type With standard make On/Off switch, Mains Indicator etc. An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
Ordering Details:Catalogue No Description JIHT-006 UNSTEADY STATE HEAT TRANSFER UNIT - Additional Information
-
