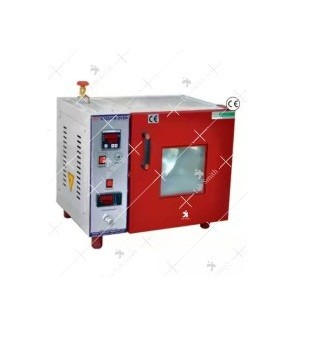

Vacuum Oven -218
Applications & Advantages
- Suitable for vacuum Drying, baking, Conditioning, Curing, Out-gassing. Solids and Liquids, Vacuum Embedding, Moisture Testing, Plating, Aging Test.
- Microprocessor Controlled System Implementing Superior Temperature Accuracy.
- Superior Uniformity and stability.
- Very easy and convenient vacuuming and venting ports.
- Easy to read vacuum gauge.
- High Quality door sealing made of silicon.
- Highly safe Solid door of steel plate.
- Over Temperature Protection.
- Prevent oxidation, decarburization due to inert atmosphere.
- Heat Transfer from concealed heaters for temperature uniformity.
- Easy to use - sliding stainless steel shelf.
Construction Features
- User friendly round internal chamber made up of stainless steel (SS-304)
- Exterior construction of steel with heat cured epoxy powder coating.
- Sliding shelf made up of stainless steel (SS-304)
Technical Specifications:
- MOC Inner: Stainless Steel (SS-304)
- MOC Outer: Powder Coated Steel
- Accuracy: +3oC
- Sensor: Pt-100
- Display: Digital LED Display for Set Value (SV) and Process Value (PV)
- Shelves: Stainless Steel (SS-304)
- Door Gasket: High Temperature Silicone Rubber
- Safety Device: Over Temp. Protector.
- Valves: Two diaphragm valves for admission of inert gas/dry air etc.
Ordering Information:
Round Inner Chamber Digital Model
Cat. No.
Capacity Ltrs.
Dimensions (WxDxH) mm
Temperature Range
LI-18600/1
Vacuum Oven, 22 ltrs
300 (Ø) x 300 (D) mm
Upto 150oC
LI-18600/2
Vacuum Oven, 44 ltrs
300 (Ø) x 600 (D) mm
Upto 150oC
LI-18600/3
Vacuum Oven, 22 ltrs
300 (Ø) x 300 (D) mm
Upto 200oC
LI-18600/4
Vacuum Oven, 44 ltrs
300 (Ø) x 600 (D) mm
Upto 200oC
LI-18600/5
Vacuum Oven, 22 ltrs
300 (Ø) x 300 (D) mm
Upto 300oC
LI-18600/6
Vacuum Oven, 44 ltrs
300 (Ø) x 600 (D) mm
Upto 300oC
Rectangular Inner Chamber Digital Model
Cat. No.
Capacity Ltrs.
Dimensions (WxDxH) mm
Temperature Range
LI-18600/7
Vacuum Oven, 16 ltrs
250 x 250 x 250 mm
Upto 150oC
LI-18600/8
Vacuum Oven, 28 ltrs
300 x 300 x 300 mm
Upto 150oC
LI-18600/9
Vacuum Oven, 95 ltrs
455 x 455 x 455 mm
Upto 150oC
LI-18600/10
Vacuum Oven, 16 ltrs
250 x 250 x 250 mm
Upto 200oC
LI-18600/11
Vacuum Oven, 28 ltrs
300 x 300 x 300 mm
Upto 200oC
LI-18600/12
Vacuum Oven, 95 ltrs
455 x 455 x 455 mm
Upto 200oC
LI-18600/13
Vacuum Oven, 16 ltrs
250 x 250 x 250 mm
Upto 300oC
LI-18600/14
Vacuum Oven, 28 ltrs
300 x 300 x 300 mm
Upto 300oC
LI-18600/15
Vacuum Oven, 95 ltrs
455 x 455 x 455 mm
Upto 300oC
LI-18600/16
Vacuum Oven, 53 ltrs
375 x 375 x 375 mm Upto 200oC
Options
Cat. No.
Options
LI-18601/1
MICROPROCESSOR BASED PID DIGITAL TEMPERATURE INDICATOR-cum-
Controller with an-built Digital timer to control the temperature
LI-18601/2
Vacuum Pump Oil free (for Oven of upto 28 Ltrs. Capacity)
LI-18601/3
Vacuum Pump (For Oven of 44 Ltrs. and 95 Ltrs. Capacity)
LI-18601/4
Digital vacuum Indicator with transducer
