VERTICAL & HORIZONTAL CONDENSER

VERTICAL & HORIZONTAL CONDENSER

More Views

VERTICAL & HORIZONTAL CONDENSER

Code:

DESCRIPTION :

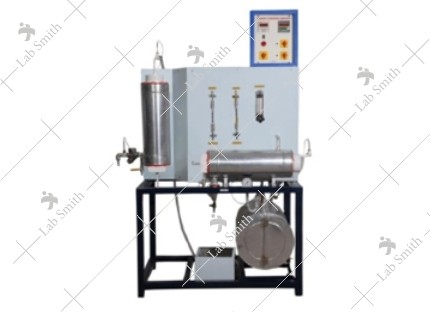

Shell & Tube type condensers are widely used in various industries. The present set-up offers a comparative study of Vertical & Horizontal condenser, which can be operated one at a time. Condenser consists of Stainless steel shell, with stainless steel tubes. Cold fluid flows through inside the tubes and steam flows through the shell. Valves are provided to control the flow rates of cold fluids.


Flow rate of cold water is measured using a Rotameter. Shell is fitted with steam traps from where condensate is collected in measuring cylinder. Temperature of inlet and outlet of both hot & cold fluids are measured by temperature sensors.


EXPERIMENTATION:

To determine the overall Heat Transfer Co-efficient and film co-efficient for vertical and horizontal condenser

UTILITIES REQUIRED :

Water supply 20 lit/min (approx.)
Floor Drain.
Electricity Supply: 1 Phase, 220 V AC, 4 kW.
Floor area of 1.5 m x 1m.

TECHNICAL DETAILS :

System	Steam to Water
Condensers	2 Nos. (Vertical & Horizontal) Insulated by Ceramic wool and cladding by Aluminium foil, Shell & tube type.
Shell	Material stainless steel.Inner Dia 100 mm, Length 500 mm (Approx.)
Tubes	Material stainless steel.OD 12.7mm, Length of tubes 500mm
Condensate Measurement	Measuring Cylinder & Stopwatch
Water Flow Measurement	Rotameter
Steam Generator	Made of stainless steel fitted with level indicator, pressure gauge, safety valve, drain and insulated with ceramic wool & claddingwith Aluminium foil.
Heaters	Nichrome wire heater (2 Nos.)
Control panel comprising of
Digital Temp. Controller	0199.9°C (For Steam Generator)
Digital Temp. Indicator	0-199.9°C, with multi-channel switch
Temperature Sensors	RTD PT-100 type-6Nos.
With standard make On/Off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHT-042	VERTICAL & HORIZONTAL CONDENSER
