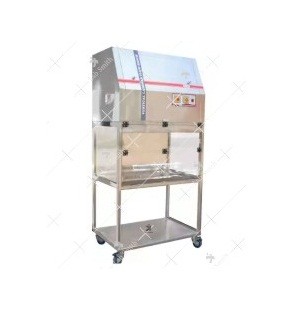

Vertical Laminar Air Flow Cabinet (Microprocessor Controlled -162 MP)

Application & Key Feature

• It is used for various works that require maintenance of the cleanliness and purity like plant tissue culture, examination and experimentation of precision electronics parts, medical sciences, pharmacy, agriculture sector and the like.
• Designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100 (Class conditions).
• Cabinets is fabricated of wooden board laminated with sunmica OR cold rolled steel duly powder coated OR electro galvanized steel OR stainless steel (SS-304grade)(as ordered).
• Working table is made of Stainless Steel Sheet (SS-304 grade).
• Front door is made out of thick transparent plexi glass.
• Air drawn through pre-filter is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger.
• Heavy Duty Motor operates with minimum noise level.
• Using a dynamic machine, the blower and motor assembly is statically & dynamically balanced.
• Working area is illuminated by fluorescent lighting fitted to the unit.
• Supplied complete with S.S. Table Top, Transparent front door, Static Pressure Manometer, Built in U.V. Germicidal light and Cock for gas, air or vacuum line, HEPA filters and pre-filter.
• The highly efficient HEPA filter maintains the optimum cleanliness and purity.
• The prefilter fitted extends the life of HEPA filter drastically.
• Silent Vibration-Free Blower ensure noiseless operation and anti-vibration construction provides efficient working environment.
• Interlocking of U.V. Germicidal Tube & Fluorescent Light with auto switch off/on Mode for blower when the door is closed/open.
• All units with MOC : Wooden/CRC/EGS/Stainless Steel are mounted on a heavy duty mild steel stand duly powder coated.
• With Solid Side Walls and transparent front door.
• To work on 220/230 volts A.C. supply.

Control & Automation

• Equipped with Microprocessor controller having alphanumeric display and soft touch controls. Controller indicates input, status, alarm function and control for blower, lights outlet and UV.
• Continuous monitoring through bright easy to read LCD panel
• Password Protection for authorized operation.
• Real time Clock
• UV timer showing used time and balance available life in hours.
• Total HEPA Filter time showing used time and balance available life in hours.
• HEPA filter choke alarm after HEPA filter life is over.
• UV light/Door/Fluorescent Light Inter Lock, i.e. UV switches ON only When door is closed, and automatically switches OFF fluorescent lights.
• If UV light is on & the operator tries to open the door, it raises audio visual alarm.
• Built-in RFI and electrical noise filters eliminate interference with adjacent instrumentation.

Technical Specifications:

• Purity: Confirming to class 100 conditions
• Main filter: HEPA Filter (99.97% efficient at 0.3 micron parties)
• Prefilter: High efficiency prefilter.
• Illumination : Fluorescent Lamp 40W
• Sterilizing: UV Germicidal Tube.
• Utility: Gas/Air cock and multipoint 15/5 Amp. Electric socket.
• Supply Voltage & Frequency: AC 230V, 50/60 Hz
