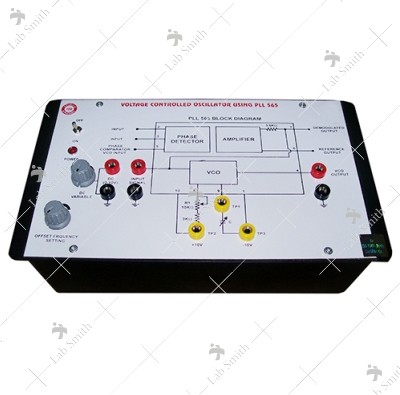

Owing to our rich industrial experience, we have been a trusted supplier of a wide array of Voltage Controlled Oscillator Using PLL 565 to our huge clientele base. It is used in scientific industry as per the diverse requirements of our patrons. Finest of raw material is used in its making along with the help of progressive machinery under the guidance and supervision of experts. Voltage Controlled Oscillator Using PLL 565 stands in sync with the prevailing global standards as tested by our experts.Objective:Voltage Controled Oscillator is designed to study one out of three important section of IC 565 i.e. Voltage Controlled Oscillator Section. The other Two section are Phase Detetctor & Amplifier Section.
Technical Specifications:Inbuilt Fixed / Variable DC Regulated Power Supplies Output Voltage +10VDC, 0-10VDC Components Provided IC 565 Potentiometer 0-10 KOhm Resistance 3 KOhm Capacitors 0047MicroF 400V Power requirement 230 VAC 10%, 50Hz. Weight 1.0Kg Approx. Dimensions (mm) 300(L) x 175(B) x 75(H) High quality Aluminum used as front panel of 270 mm x 170mm & mounted on light weight shock proof plastic cabinet. Circuit diagram printed on Aluminum Front Panel & all important test Points are brought out on front panel. Standard Accessories:Power chord, Patch chords & Instruction manual.Ordering Details:Catalogue No. Description LEC-3100 Voltage Controlled Oscillator Using PLL 565 - Additional Information
-
Additional Information
Code No - Reviews
-
