DESCRIPTION:

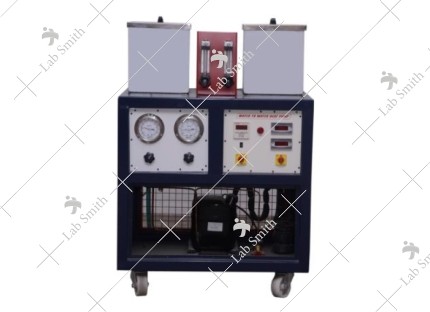

Heat Pump and the refrigerating machine basically work on one and the same principle and with the same components. Heat pump is a machine, which delivers heat at a temperature suitable for domestic, Industrial and Commercial purposes. By added work input form the motor or engine it extracts heat from low-grade source. In many circumstances heat pumps can make valuable contribution to energy conservation. The majority of heat pumps operate on the vapour compression cycle using a refrigerant as the working fluid. Heat pump is fully sealed R-134A refrigerant system using water-to-water pumping principle. The equipment produces realistic results and has low thermal inertia so that unit stabilises very quickly and enables student’s maximum experimentation.

The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Lab view of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “Lab Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

EXPERIMENTATION:

• Determination of co-efficient of performance of the unit when working as water-to-water heat pump.
• To Construction of Energy balances for completed system over a range of operating conditions.
• To determine overall heat transfer co-efficient for condenser and evaporator.

UTILITIES REQUIRED:

• Electric supply: Single Phase, 220 VAC, 5Amp. 50 Hz.
• Water supply and drainage
• Floor area : 1.5 m x 1m
• Computer System : Pentium IV with DVD Drive, Windows XP, MS-Office XP version pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS:

Ordering Details:
