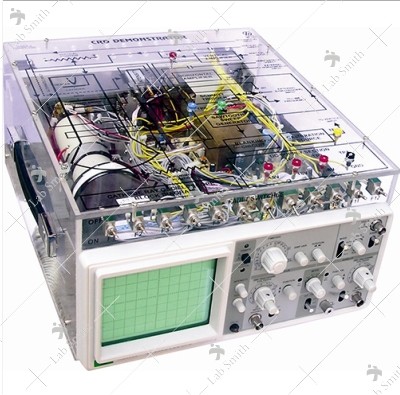

We are one of the leading suppliers of CRO Demonstrator (20MHz Dual Channel) to our widely spread clients. It is used in scientific industry depending upon the diverse requirements of our patrons. Fine quality raw material and technologically advanced machinery is used for its fabrication leading to highly increasing demands in domestic as well as international markets. CRO Demonstrator (20MHz Dual Channel) stands in conformity with the prevailing global norms and standards. Clients can avail it from us at highly affordable prices.Objective:- To study working principle & various faults of Cathode Ray Oscilloscope
- To study practical & theoretical aspects of CRO circuitry
- To study signals & voltages in different sections
Technical Specifications:Power Chord, CRO Probes 1:10 (2Nos.) & Instruction Manual
Standard Accessories:CRT 6"Rectangular screen with internal graphical Display CH1, CH2, ADD, ALT & CHOP Deflection Factor 5mV/div to 5V/div +3%, 1mV/div to 1V/div,+5% (x5), 10 steps Rise Time <17.2ns Maximum Input Voltage 250 (DC + AC peak value)when <1KHz (250V, DC +AC) Input Coupling AC, DC & GND Polarity Selection + (CH2 only) Display Mode 1, 10 & X-Y Time Base 0.2us/div to 0.2s/div, 9 ranges Sweep Expansion x10 Accuracy +3% Triggering Mode Auto, NORM, TV-V, TV-H Triggering Source Int, Line & Ext. AUTO 20Hz-20MHz NORM 0.5 div INT, 0.5 Vp-p EXT TV-H At least 1 div or 1 Vp-p Input Impedance 1M ohm X-Y phase difference <3 degree, DC-50 KHz Calibration Waveform Frequency 1KHz 2%,Voltage 0.5 V 1% Outer Cabinet Acrylic, 5mm thick wall Power requirement 220 VAC +10% , 50 Hz Weight 8.0Kg Approx. 8x10 division (1div-1cm) Vertical Deflection Horizontal Deflection Trigger System Block Diagram printed on the Top Panel Control Switches and Knobs on the front panel Side Handles Provided to carry the instrument 12 Fault switch is on front panel 10 Test Points provided on top panel only for observations Complete view of CRT section & other control sections
Ordering Details:Catalogue No. Description LTM-5010 CRO Demonstrator (20MHz Dual Channel) - Additional Information
-
Additional Information
Code No - Reviews
-
